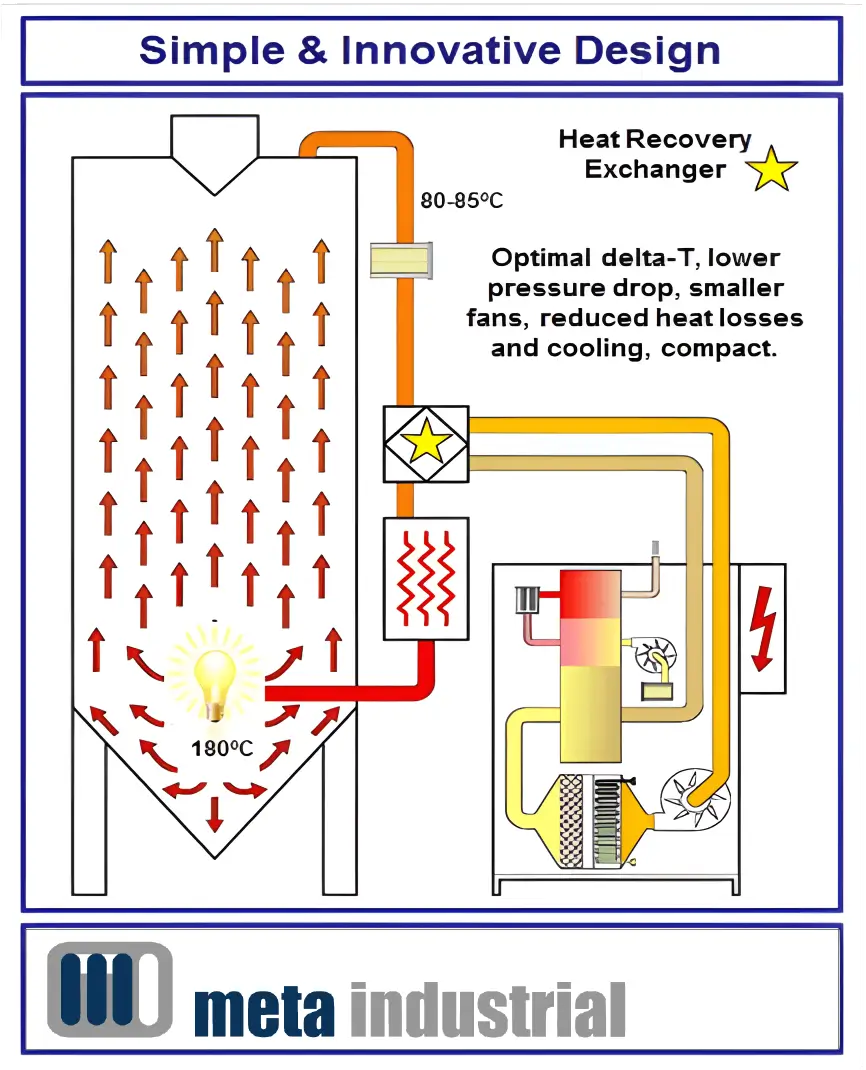

We promote innovative and revolutionary PET resin drying technology which achieves greater energy efficiency, performance, with a simple and clever design.

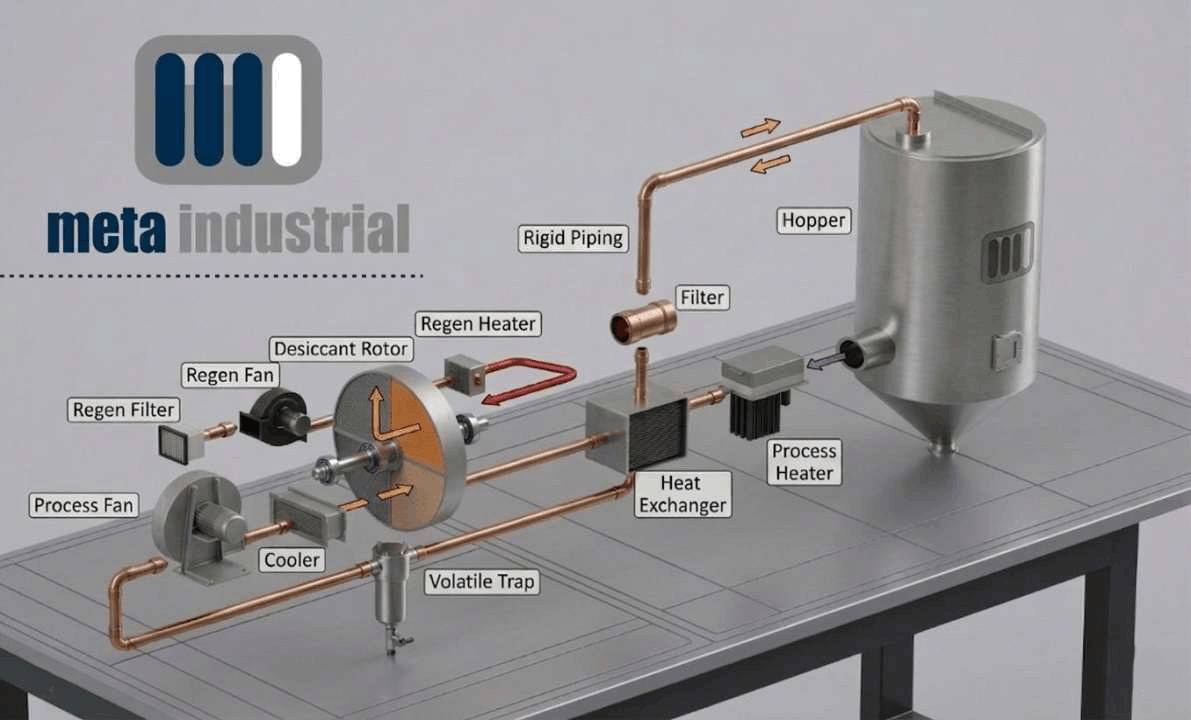

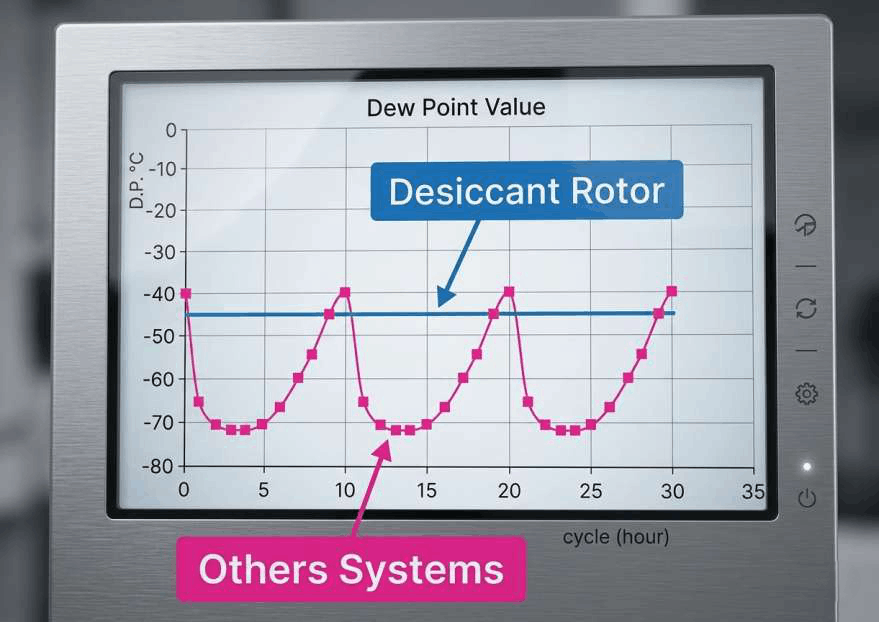

Dryers with desiccant rotors deliver constant dew point, airflow, and temperature, therefore consistent drying.
SOME ADVANTAGES
Efficient use of energy
Simplicity and reliability
Price competitive
Continuous process
Constant dew point
Constant temperature
Constant air flow
No variation in resin IV
Superior quality and workmanship
Constant injection process
Smaller process and regen fans
Less expensive components
Fewer moving parts
Simple installation and start-up
Quick desiccant changes
Less maintenance
Drying Advantage
Besides the high energy efficiency, our technology reduces down-time attributed to maintenance, cost of replacement parts, on-site servicing requirements, and resin waste at start-ups … resulting in increased productivity and profitability.
GUARANTEES

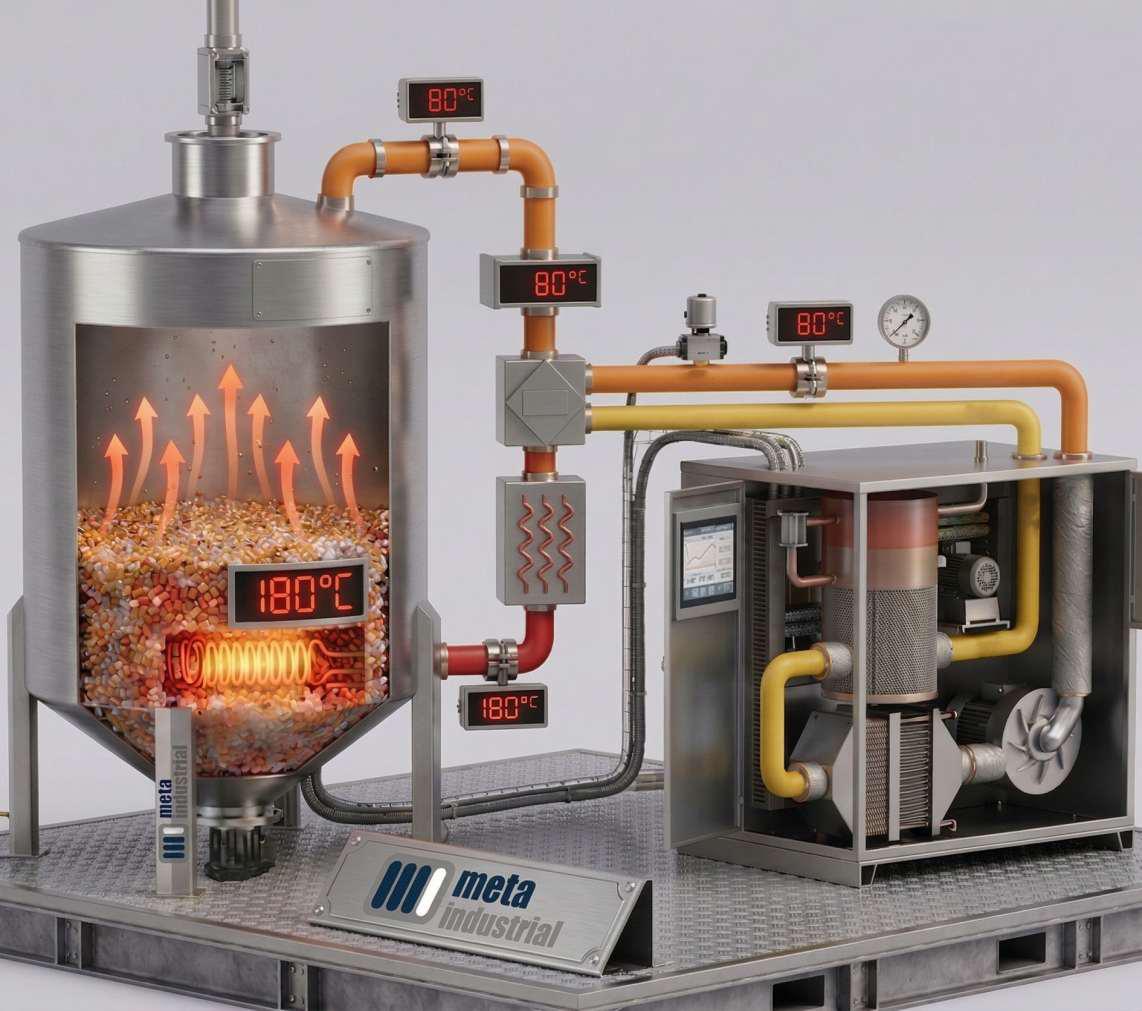

Consistent Resin Temperature (> 175C)
Consistent Final Moisture (<40 ppm)
Consistent IV Levels (no IV drop)
Consistent Dew Point Levels
Consistent AA Levels
Guaranteed Less Maintenance
Guaranteed Less Down Time
Guaranteed Higher Productivity
Guaranteed Less Floor Space
Energy Usage of 15 to 20 Wh/kg for Single-Hopper Systems (Mezzanine)
Energy Usage of 19 to 24 Wh/kg for Split Systems (Floor Level)
Must add the energy required to raise the temperature of then- specific PET pellets to the desired drying temperature (enthalpy), between 56 and 67 Wh/kg. This greatly depends on initialn- resin temperature.
Energy figures exclude the vacuum loading equipment
BENEFITS
Superior Quality & Workmanship
Advanced Features & Technologies
More Energy Efficient & Competitively Priced
Constant Process Conditions (Recusorb Principle)
Systems Totally Complete & More Compact
Insulated Stainless Steel Hoppers (Mass-Flow Efficiency > 90%
User-Friendly PLC with Fully Automatic Airflow/Dewpoint Functions
Stainless Steel Piping & Dual-Filtration System (Optional)
Volatile Traps & Condensate Collectors (Standard)
Safety Thermostats & Thermo switches (Prevent Problems)
Integrated Vacuum Conveying Systems and Fines Separators
Smaller Process & Regeneration Fans (Less Energy / Less Money)
Less Parts Replacement (Lower Prices)
Shorter Replacement Times
